Rear Badge View Camera - VW flip camera RVC CAM FOR Volkswagen


** This is third part product.
** recommend the installation to be done by a professional as manuals are not always included.
** You could DIY, but no warranty on unprofessional installations

No additional control units required! Fit on VW Golf 5, 6 / VW Passat B6, B7 limousine / Passat CC / VW EOS.

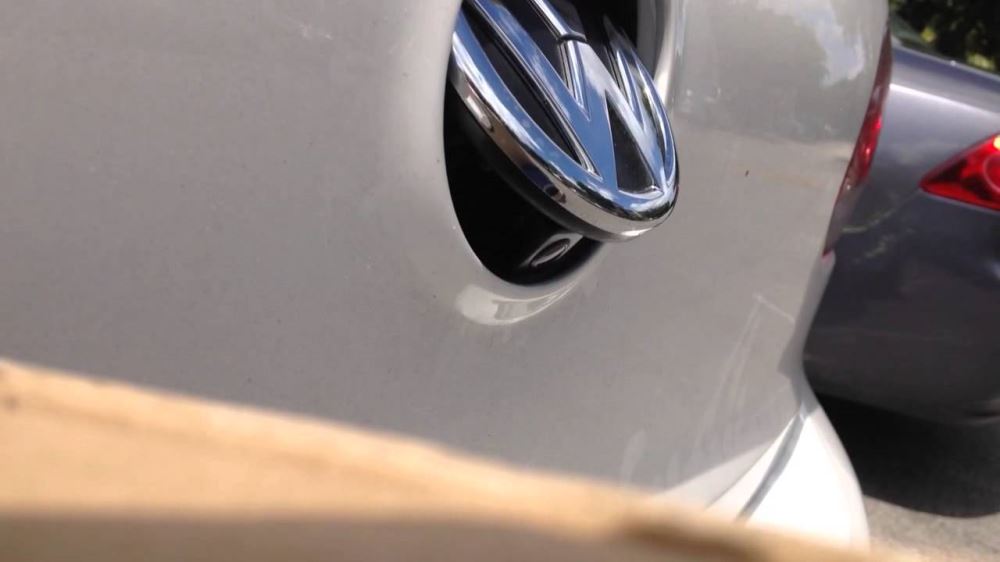

This is the new Volkswagen rotating VW logo camera replacing the VW logo at the rear, you need to take out the original VW logo, and installing this fliping camera. it is Fashionable and cool design!

Technique Parameter:

Image sensors: 1/3" color HD CCD

TV System: NTSC default & PAL request

Minimum illumination. <0.5 BLC: Auto

White Balance: Auto

Video Color: Colorful

Waterproof Class: ip66

Effective Pixels : 728(H)*582(V)(NTSC)

Resolution : 420TV lines

Video Output: 1.0Vp-p,75

Electronic Shutter: 1/60(NTSC)-1/10000S

S/N ratio: Better Than 48db

Lens Angle: 170°

Operation Temperature: -20°C+80°C RH95%

Storage Temperature: -40°C+100°C RH95%

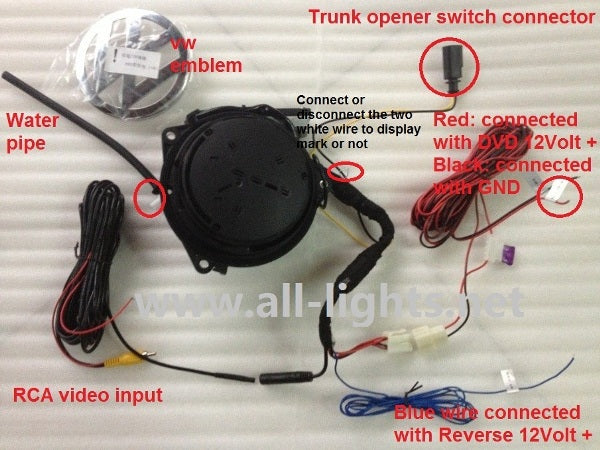

Working Power (DCV): 12V

Current consumption: 90mA Max

Power: DC 12V

Video cable is RCA connector

12 month warranty


Professional Installation available (extra charge)

**GST Invoice Will Supply for Sale If you require**

Pick up and view the product at Pepsi Auto, Onehunga , Auckland.
Showroom/Workshop during Business hours Monday to Friday, 9 am to 5 pm, Saturday 9 am to 1 pm

Combo Shipping Available
